Recovery Screenshots
![]()
Method : SP Flash Tool method, root not required
3. Now open extracted SP Flash Tool folder and run Flash_tool.exe
4. Click on "Scatter-loading" button which is on the right side below Downloading Agent. A new window will open. Browse to the extracted CWM recovery 6.0.2.8 folder and select MT6575_Android_scatter.txt file.
5. Flash tool will populate the Map file on the application window. You will see multiple entries. Uncheck all entries except for RECOVERY.
6. Now click on "Download". Warning message will occur, but ignore that and click Yes.
7. You will see in the status bar below "Searching", now connect your phone (with battery inserted + Press and Hold Volume Up Key) via the USB cable.
8. Wait for the process to finish and then you will get a window showing green circle.
Congrats You have flashed CWM recovery 6.0.2.8 !
Note: If you get any error in SP Flash Tool, then recheck your MTK drivers installation or manually install them through device manager.
Booting into CWM recovery 6.0.2.8 is the same as in the stock recovery. Switch on the phone with "Volume Up" and "Power" button Pressed. The Phone will boot into CWM recovery 6.0.2.8 !
I have also attached the the Stock Recovery.zip.
Quote:
|
How to install Clockworkmod Recovery In You Lava Iris N400 |
Quote:
|
Make Note :- Posted Screenshots only for Example its not for Lava Iris N400 also download require stuffs first before asking anythings |
Quote:
|
Requirements :- 1. SP Flash Tool + Scatter file from attachments 2. MT65xx VCOM Driver 3. CWMR 6.0.2.8 4. Mobile Uncle Tools ( Optional if u wanna flash recovery those way) |
Method : SP Flash Tool method, root not required
Quote:
|
1. Download MTK6575 Drivers.zip and unzip/extract on your Windows PC, just run InstallDriver.exe to install drivers. |
Quote:
|
2. Download CWM recovery 6.0.2.8 and SP_Flash_Tool_v3.1220.02_FOR_S101A.zip , unzip/extract them. |
4. Click on "Scatter-loading" button which is on the right side below Downloading Agent. A new window will open. Browse to the extracted CWM recovery 6.0.2.8 folder and select MT6575_Android_scatter.txt file.
5. Flash tool will populate the Map file on the application window. You will see multiple entries. Uncheck all entries except for RECOVERY.

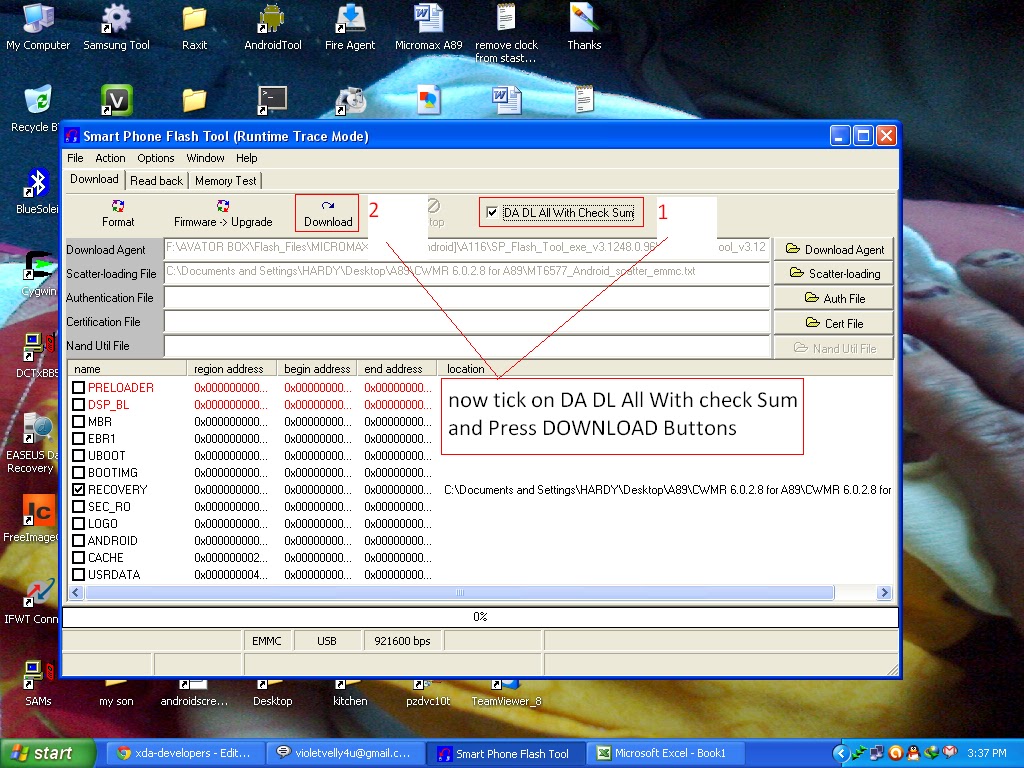

6. Now click on "Download". Warning message will occur, but ignore that and click Yes.

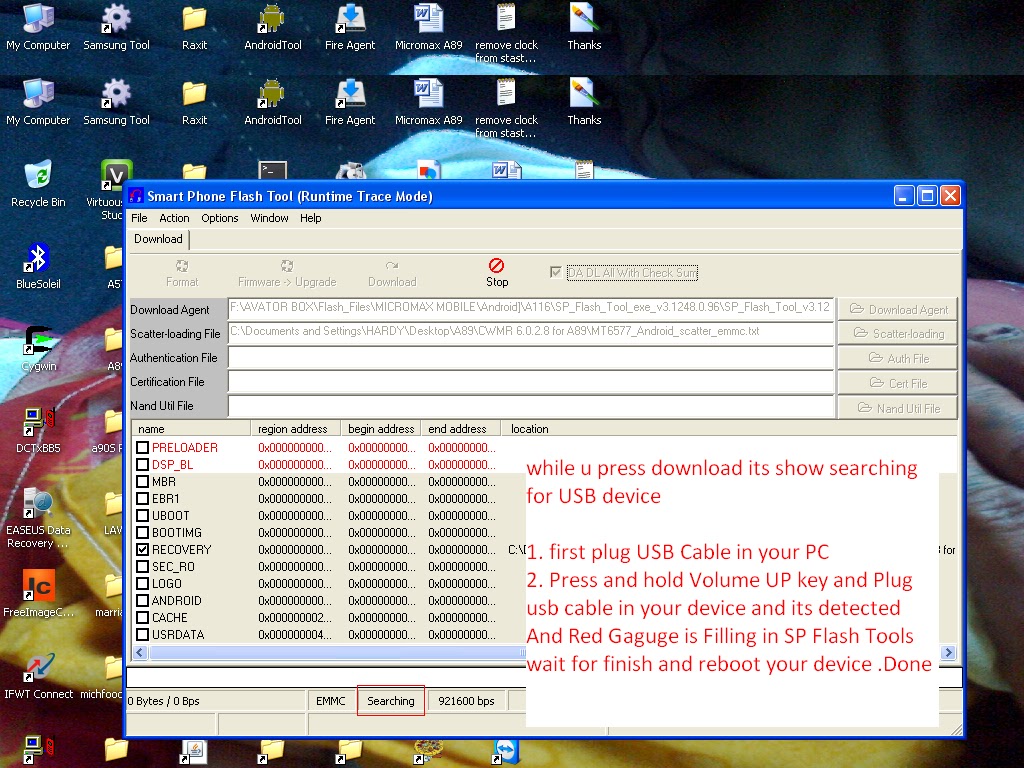

7. You will see in the status bar below "Searching", now connect your phone (with battery inserted + Press and Hold Volume Up Key) via the USB cable.
8. Wait for the process to finish and then you will get a window showing green circle.
Quote:
|
Very Easy & safe way to FLASH CWM RECOVERY Without having PC steps:-> 1. Downlaod CWM recovery 6.0.2.8 extract it and rename it to only "" recovery.img"" and copy recovery.img only to root of your SD Cards 2: download MobileUncleTools for MTK from the attachments and install it as normal apps 3. Now open MobileUncleTools apps you recently installed. 4. grant Superuser permissions 5. There click on recovery update menu 6. Then click on the recovery image name of recovery.img 7. Let the app install the recovery. after it automatically reboot your device in to recovery 8. now remove battery from device and reinsert it and then reboot device to recovery using volume up + power key done your CWMR is appears there |
Quote:
|

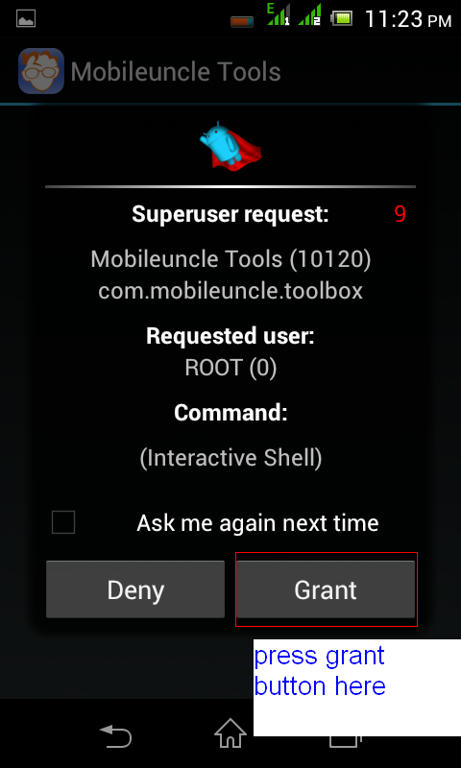

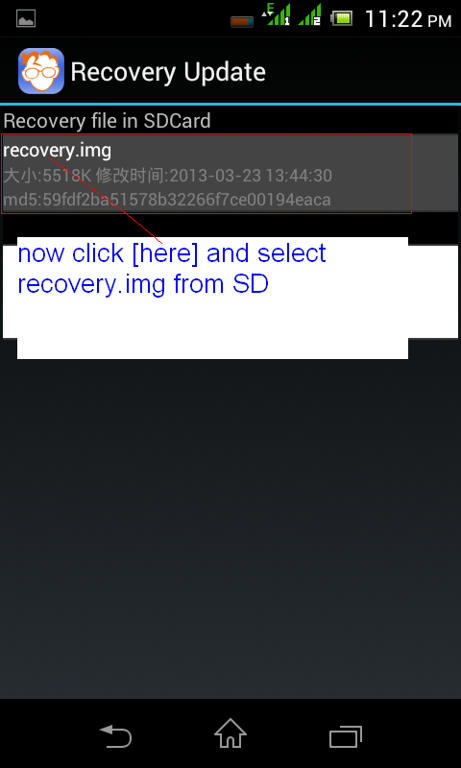

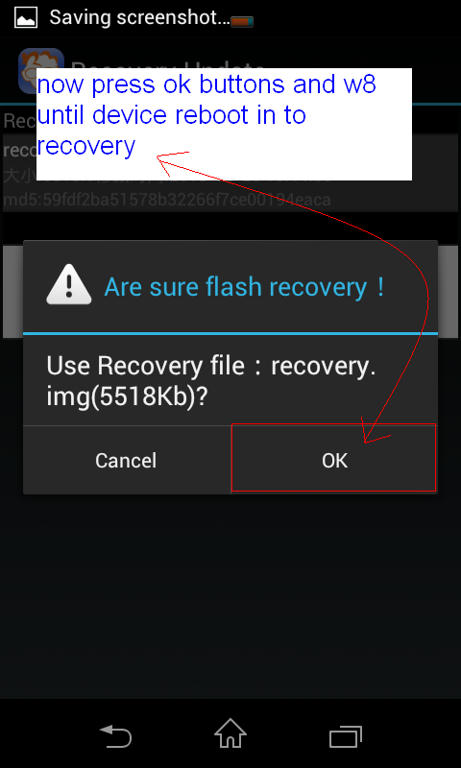

Screenshots of Mobile uncle tutorials     |
Quote:
|

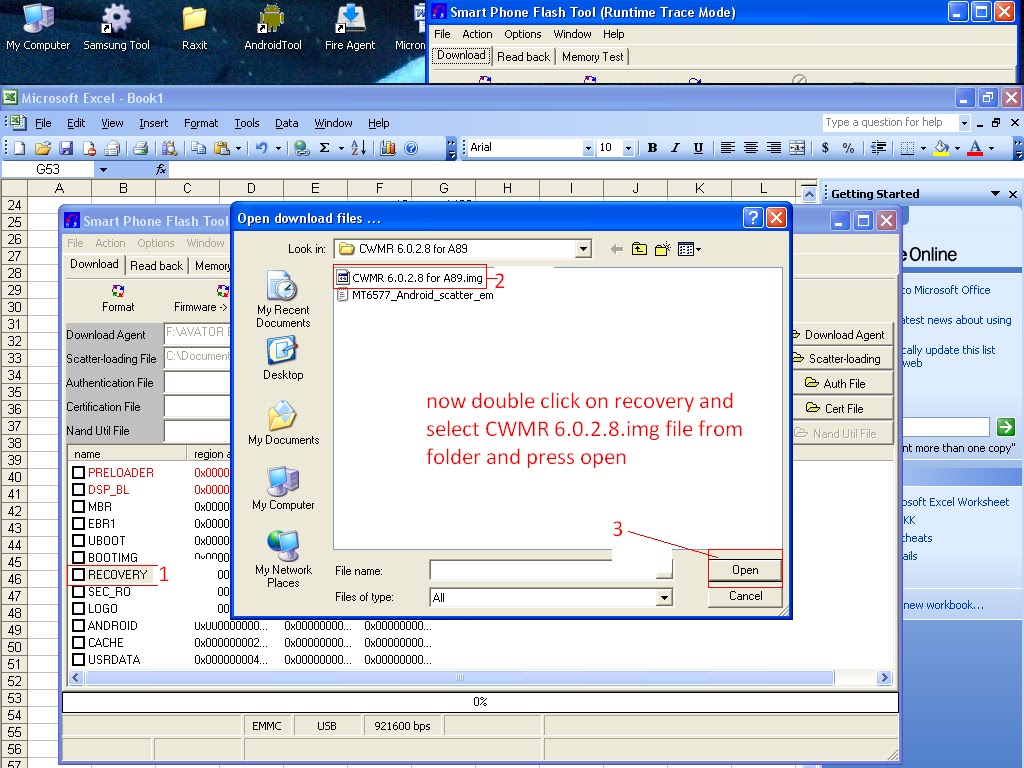

Some SS Tutorials for how to flash CWMR using SP Flash Tools |
Quote:
|
Check here all steps      |
Note: If you get any error in SP Flash Tool, then recheck your MTK drivers installation or manually install them through device manager.
Booting into CWM recovery 6.0.2.8 is the same as in the stock recovery. Switch on the phone with "Volume Up" and "Power" button Pressed. The Phone will boot into CWM recovery 6.0.2.8 !
I have also attached the the Stock Recovery.zip.
Quote:
|
Credit : -
